Booking

 The are 2 booking types available: Booking for sources and Booking for offcuts.
  1. Refreshing the information about sources and reusable offcuts. This is done by clicking the "Refresh" button.
  2. Launch the booking procedure by clicking the "Execute booking" button.

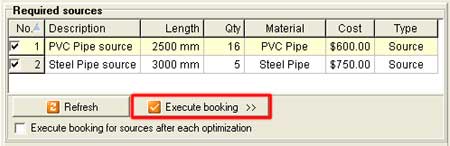

The booking process for sources will:

  1. Substract the quantity of required sources from the quantity of existing sources in stock. Sources not present in stock will appear with negative values in the quantity field.
  2. Update the value of the "Last updated" label on the bottom of the stock grid.

Prior to booking, sources can be added or removed from the list.


To launch the booking procedure for sources click the "Execute booking >>" button from the "Required sources" section.

The booking process for sources can be automated by checking the option "Execute booking for sources after each optimization".

To reset the "Required sources" list to its initial state click the "Refresh" button from the "Required sources" section.

Please note that once executed, the booking process can not be undone!

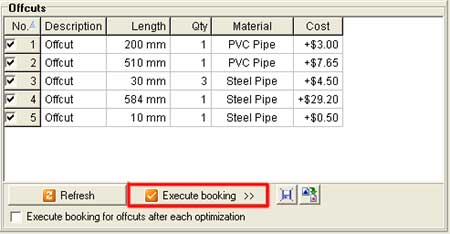

The booking process for offcuts will:

  1. Add the offcuts in the list of offcuts to the stock.
  2. Update the value of the "Last updated" label on the bottom of the stock grid.

Prior to booking, offcuts can be added or removed from the list.


To launch the booking procedure for offcuts click the "Execute booking >>" button from the "Offcuts" section.

The booking process for offcuts can be automated by checking the option "Execute booking for offcuts after each optimization".

To reset the "Offcuts" list to its initial state click the "Refresh" button from the "Offcuts" section.

To save the offcuts list as a Smart1DCutting source file (*.plc) click the "Save as..." button.

To export the offcuts list to a CSV file click the "Export" button.

Please note that once executed, the booking process can not be undone!
