Cutting Report

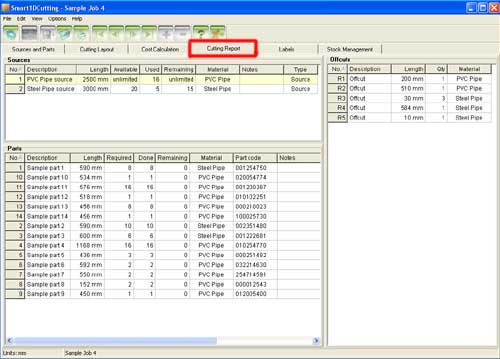

The Cutting Report displays information about the sources, parts and offcuts contained in the whole cutting layout. To reach this section select "Cutting Report" tab in the main window.

To print the Cutting Report use the "Print"

button from the buttons bar.

The "Cutting Report" is made up of 3 sections: Sources, Parts and Offcuts.

Sources - displays information about the sources in the cutting layout as a result of the optimization process.
	No.	- identifying number of the source
	Description	- description of the source
	Length	- length of the source
	Available	- the number of available sources (equal to the qty field in the Sources list)
	Used	- the number of used sources in the cutting layout
	Remaining	- the number of sources that were not used in the cutting layout
	Material	- material of the source
	Notes	- notes about the source
	Type	- the source type: it can be "Source" if it is a new source or "Offcut" if the source is an offcut resulted from previous optimizations.

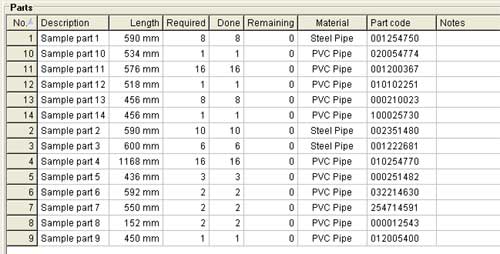

Parts - displays information about the parts in the cutting layout as a result of the optimization process.
	No.	- identifying number of the part
	Description	- description of the part
	Length	- length of the part
	Required	- the number of needed parts
	Done	- the number of parts that fit on the layout
	Remaining	- the number of parts that did not fit on the layout
	Material	- material of the part
	Part code	- the code that is going to be printed as barcode on the labels
	Notes	- notes about the part
	Left angle / Right angle	- the cutting angle for each side of the part
	Works	- the works for the part

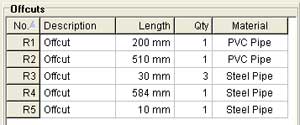

Offcuts - displays information about the offcuts in the cutting layout as a result of the optimization process.
	No.	- identifying number of the offcut
	Description	- description of the offcut
	Length	- length of the offcut
	Qty.	- number of offcuts in the cutting layout
	Material	- material of the offcut
