Working with job files (single job mode)

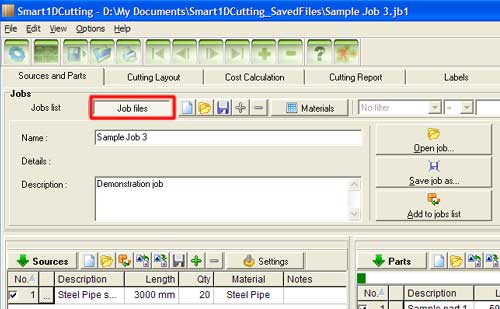

The "Single job mode" section provides a classic way of working with jobs. You can create, load and save job files the same way you create documents in any other application.




To define a new job, click the "New" button on the buttons bar.

To load a job select "File -> Open job...", click the "Open" button on the buttons bar or click the "Open job..." button on the right.

To change the job name or description, simply edit the text in the "Name" and "Description" fields and click the "Save" button to save the changes.

To save the job as a another job file select "File -> Save job as..." from the menu or click the "Save job as..." button on the right.

To add a job file to the jobs list so users from other workstations can access it click the "Add to jobs list" button. The job data, including sources, parts and cutting layout will be copied to the jobs database.
