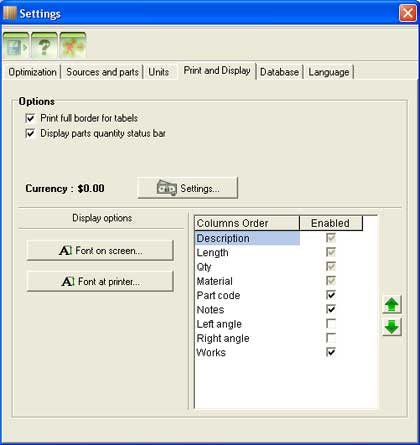

- Print full border for tables - if checked, full table
border is printed. If unchecked, tables are printed using a clear style,
rows being separated by a horizontal line.
- Display parts quantity status bar - show/hide the
"Parts quantity status bar". This status bar is situated in
the "Sources and parts" area, above the parts grid. It displays
the total of parts entered so far. This can be useful for users of Smart1DCutting
Free (30 parts), Smart1DCutting (100 parts), Smart1DCutting (1.000 parts)
and Smart1DCutting (10.000 parts)
- Currency - shows the currency format currently in
use. To configure currency settings click the "Settings" button.
The "Regional and Language Options" window will open. Next,
you can simply select your country from the drop-down list or click
the "Customize" button to manually adjust the settings. Make
sure you click the "Apply" button to confirm the changes.
Please note that changing the currency will NOT perform
any currency conversion.
- Columns Order - allows to change the order of columns
in the grids. By default the columns order is: Description, Length,
Qty, Material etc. To change the order of a column select it and click
the "Up" or "Down" buttons to move the column up
or down in the list. Click the "Save"
button to close the settings dialog window and to save the changes.
Certain columns can be disabled by unchecking their corresponding checkbox
in the "Columns Order" grid. A disabled column will not appear
in the program anymore until it is checked again. This can be helpful
for users who do not need the extra fields like Part code, Notes, Left
angle, Right angle or Works.
The main columns: Description, Length, Qty, Material are required by
the program to work and can not be disabled.
- Display Options - allows to configure the display
preferences like font name and size.
To change the font on screen click the button "Font
on screen...". To change the font at printer click
the button "Font at printer...".
|
