Booking

 The are 3 booking types available: Booking for panels, Booking for offcuts and Booking for bands.
  1. Refreshing the information about panels, bands and reusable offcuts. This is done by clicking the "Refresh" button.
  2. Launch the booking procedure by clicking the "Execute booking" button.

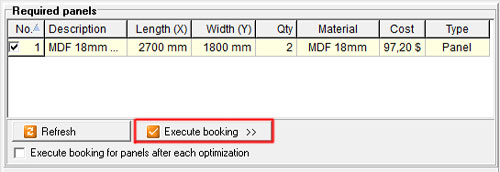

The booking process for panels will:

  1. Substract the quantity of required panels from the quantity of existing panels in stock. Sources not present in stock will appear with negative values in the quantity field.
  2. Update the value of the "Last updated" label on the bottom of the stock grid.

Prior to booking, panels can be added or removed from the list.


To launch the booking procedure for panels click the "Execute booking >>" button from the "Required panels" section.

The booking process for panels can be automated by checking the option "Execute booking for panels after each optimization".

To reset the "Required panels" list to its initial state click the "Refresh" button from the "Required panels" section.

Please note that once executed, the booking process can not be undone!

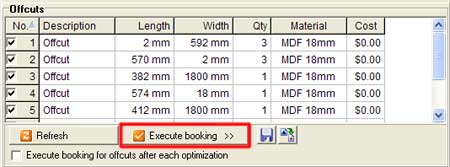

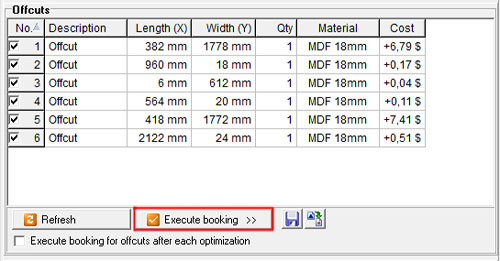

The booking process for offcuts will:

  1. Add the offcuts in the list of offcuts to the stock.
  2. Update the value of the "Last updated" label on the bottom of the stock grid.

Prior to booking, offcuts can be added or removed from the list.


To launch the booking procedure for offcuts click the "Execute booking >>" button from the "Offcuts" section.

The booking process for offcuts can be automated by checking the option "Execute booking for offcuts after each optimization".

To reset the "Offcuts" list to its initial state click the "Refresh" button from the "Offcuts" section.

To save the offcuts list as a Smart1DCutting source file (*.plc) click the "Save as..." button.

To export the offcuts list to a CSV file click the "Export" button.

Please note that once executed, the booking process can not be undone!

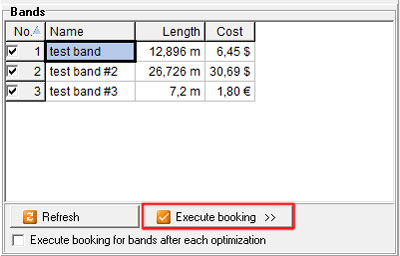

The booking process for bands will:

  1. Substract the length of required bands from the length of existing bands in stock. Bands not present in stock will appear with negative values in the length field.
  2. Update the value of the "Last updated" label on the bottom of the stock grid.

Prior to booking, bands can be added or removed from the list.


To launch the booking procedure for bands click the "Execute booking >>" button from the "Bands" section.

The booking process for bands can be automated by checking the option "Execute booking for bands after each optimization".

To reset the "Bands" list to its initial state click the "Refresh" button from the "Required bands" section.

Please note that once executed, the booking process can not be undone!
