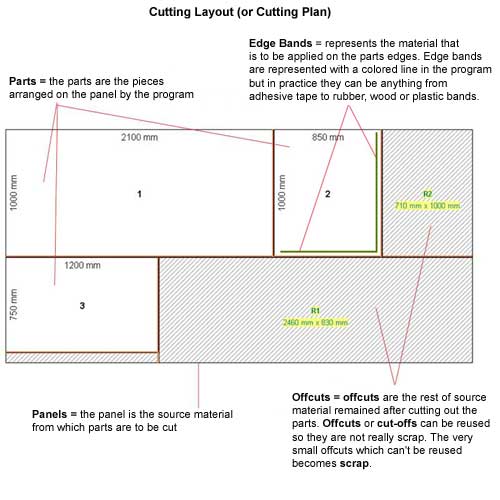

Panel |
the source material from
which the parts are to be cut |
Parts |
the pieces that are to be cut, arranged
on the panel by the program during optimization |
Offcuts |
the rest of source material remained
after cutting out the parts. Offcuts or cut-offs can be reused so
they are not really scrap.
The dimensions of the minimum reusable offcuts can be set in the Materials
window under Edit -> Materials... |
Scrap |
the very small offcuts or cut-offs which
can't be reused |
Edge bands |
represents the material that is to be
aplied on the parts edges. Edge bands are represented with a colored
line in the program but in practice they can be anything from adhesive
tape to rubber, wood or plastic bands. |
