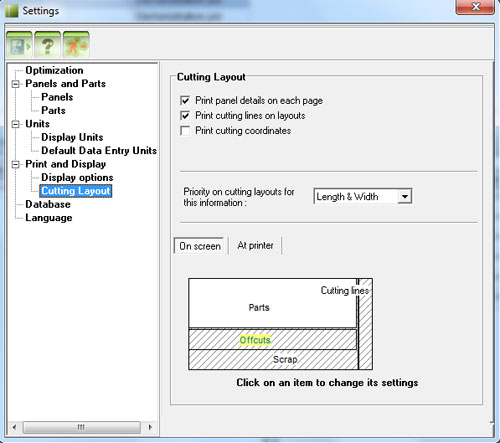

- Print panel details on each page - if this is checked, panel
details will be printed on each layout. If unchecked, panel details
will be centralised in a report and printed at the end of the cutting
layout.
- Print cutting lines on layouts - if checked, cutting
lines will be printed on the layouts where the panel needs to be cut.
- Print cutting coordinates - if checked, cutting coordinates
will be printed where possible. Please note that if might happen to
not display all cuts coordinates when there is not enough space between
2 cuts.
- Priority on cutting layouts for this information
- the selected information will get higher display priority on small
parts on which the whole part information does not fit. The available
options are: Length & Width, Description and Part code.
The part number will be always displayed.
- Display Options - allows to configure the display
preferences for panels, parts, offcuts, cutting lines and cutting coordinates.
To change the cutting lines color, click on the cutting
line or on the string "Cutting lines". A color selection popup
window will open, letting you choose the color of cutting lines.

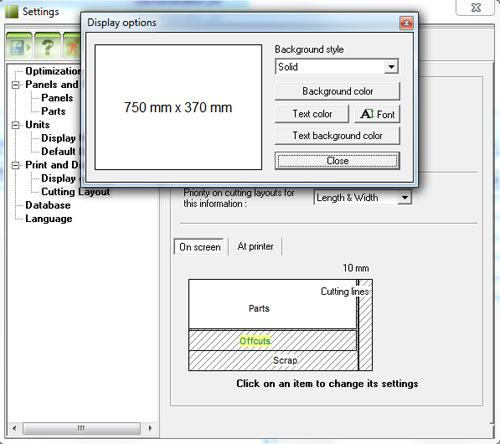

To change the cutting coordinates font click on the
coordinates label (i.e.: 10 mm in the screenshot below). A font selection
popup window will open, letting you choose the font name and size.
To switch between screen and printer
options click the tab headers "On screen" and "At printer".
By clicking on any other item like "Parts", "Offcuts"
or "Scrap" the "Display options" popup opens.
|
