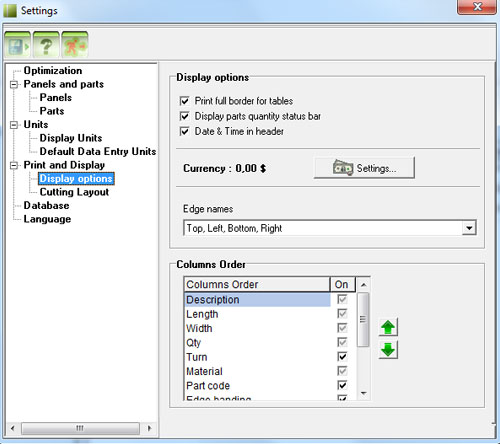

- Print full border for tables - if checked, full table
border is printed. If unchecked, tables are printed using a clear style,
rows being separated by a horizontal line.
- Display parts quantity status bar - show/hide the
"Parts quantity status bar". This status bar is situated in
the "Panels and parts" area, above the parts grid. It displays
the total of parts entered so far. This can be useful for users of Smart2DCutting
Free (30 parts), Smart2DCutting (100 parts), Smart2DCutting (1.000 parts)
and Smart2DCutting (10.000 parts)
- Currency - shows the local (system) currency format
currently in use. To configure currency settings click the "Settings"
button. The "Regional and Language Options" dialog will open.
Next, you can simply select your country from the drop-down list or
click the "Customize" button to manually adjust the settings.
Make sure you click the "Apply" button to confirm the changes.
This currency is different from the 3 predefined
currencies available within the program.
Please note that changing the currency will NOT perform
any currency conversion.
- Edge names - there are 5 different naming alternatives
for parts edges which can be selected from the drop-down list. The edge
names will be applied to all edge bands and margins.
- Columns Order - allows to change the order of columns
in the grids. By default the columns order is: Description, Length,
Width, Qty, Material etc. To change the order of a column select it
and click the "Up" or "Down" buttons to move the
column up or down in the list. Click the "Save"
button to close the settings dialog window and to save the change.
Certain columns can be disabled by unchecking their corresponding checkbox
in the "Columns Order" grid. A disabled column will not appear
in the program anymore until it is checked again. This can be helpful
for users who do not need the extra fields like Rotate, Part code, Notes,
Edge banding or Works.
The main columns: Description, Length, Qty, Material are required by
the program to work and can not be disabled.
|
