Parts default values

In the "Parts" section you can set default values for parts. Default values are used only when manually adding a new part. For imported or loaded data, default values do not apply.

Panels - Default values

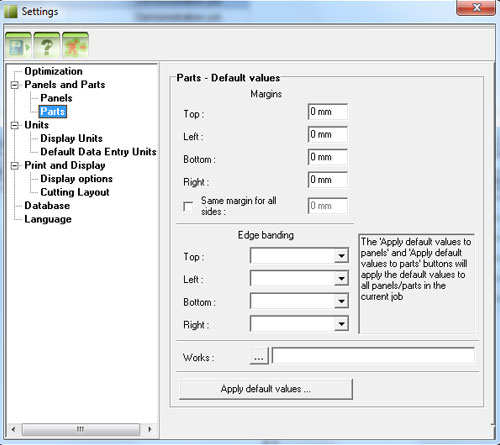

Parts - Default values





Parts - Default values
  • Margins - setting margin values for parts will cause the optimization engine to consider the part Length = Length + Left margin + Right margin and Width = Width + Top margin + Bottom margin.
    Every new part added manually will have its margin values set to the default margin values.

  • Edge banding - specifies the default band type for each side of the part. Every new part added manually will have its edge banding info set to the default edge banding values. Empty value means edge banding is disabled for that side of the part.

  • Works - specifies the default value of works for parts. Every new part added manually will have its works value set to the default works value.

The parts default values can be applied to the parts in the current job as well. To apply the parts default values to all parts in the current job click the "Apply default values..." button from the parts section and check the default values you would like to apply, as illustrated in the picture below:



Then click "OK". The selected default values will be applied to all parts in the current job.
